Stainless Steel Pneumatic Syringe Barrel – Size from 10cc to 500cc

Name: Metal dispensing syringe

Material: stainless steel

Volume: 10cc 30cc 55cc 100cc 200cc 300cc 500cc

Connector type: Luer lock/Big mouth screw

Usage: Industrial dispensing glue

Shelf life: 5 years

MOQ: 1pc

Packaging: Carton

Payment method: TT/Western Union/Paypal

Shipping way: express/boat


Stainless Steel Pneumatic Syringe Barrel – Size from 10cc to 500cc



Feature of Pneumatic glue dispenser syringe

  1. Made of pure stainless steel, in order to make sure it is 100% safe for high pressure, we strength the thickness of wall to as many as 3mm. Suitable for withstanding high temperature and high pressure.
  2. There are 2 kinds of mouth of barrel, standard lure lock tip of 10cc, 30cc, 55cc, 100cc and 200cc. Both of 300cc and 500cc are big mouth, you need to install a tip adapter If you want to connect standard dispensing needles. If you want to buy the adaptor, please feel free to contact with us.
  3. Stainless steel dispensing syringe, could be used for the viscosity glues or pastes which are already packed well, or directly put the glue or fluid into the barrel to be used. One of The biggest advantages is resisting corrosion, besides, it has long working life, it is easy to clean. It is can be handled by hand or secured on machine, which has wide range of using.
  4. This stainless steel syringe barrel is pneumatic, so it has to connect with automatic glue dispenser when working.



Material Volume ID OD Length Mouth dia. Connector type
Stainless steel 10cc 16mm 18mm 99mm 1.5mm Male luer lock
Stainless steel 30cc 22mm 25mm 138mm 2mm Male luer lock
Stainless steel 55cc 22mm 25mm 200mm 2mm Male luer lock
Stainless steel 100cc 29mm 31.5mm 200mm 3mm Male luer lock

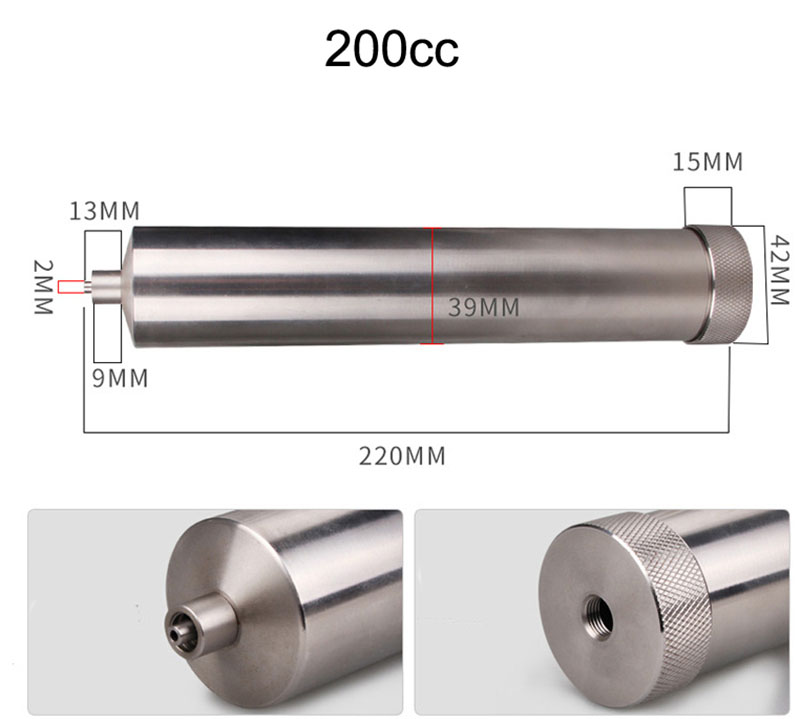

Stainless steel 200cc 36mm 39mm 220mm 2mm Male luer lock
Stainless steel 300cc 50mm 55mm 220mm 12mm Large screw hole
Stainless steel 500cc 50mm 55mm 290mm 12mm Large screw hole
