Musashi Split Type Tapered Dispensing Tip & Nozzle Stainless Steel

Name: Precision Tapered nozzle

Material: Stainless steel

Feature: hub and tapered head is split

Workmanship: Polished inside and outside

Length: 23.2mm

Diameter: see below table

Size: 12 types

Packaging: single pack


Stainless Steel Split Type Tapered Dispensing Tip & Nozzle Bayonet

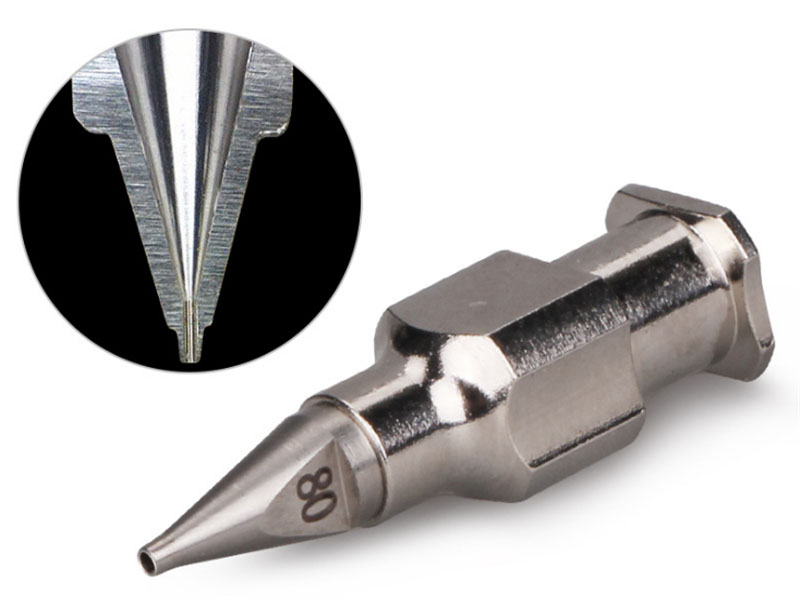

  • This precision stainless steel tip is tapered, the distinctive feature is that the hub and tapered head is separated.
  • It is made out of 303 stainless steel from Japan, individually moulding, and processed by precision workmanship and high production standard, the tip is very thin, both of inside and outside walls are polished to ensure it is burr-free and has exact and smooth flow of fluids going through the tip.
  • This tapered dispensing tip has strong resistance against corrosion and compression, work on air pressure up to 100 psi.
  • Using double helix luer lock hub for securing the attachment closely for leak free, for use with dispensing valves on robots or automation, luer lock syringes, fittings, adapters etc. Which is very easy to mounted and dismounted.
  • Apply to various high viscosity adhesives, glues, solder pastes, solvents etc.
  • We also supply one piece stainless steel luer slip tapered nozzle and one piece stainless steel luer lock dispensing tip.



Specifications

Specification Inside dia.(mm) Outside dia.(mm) Total length(mm) Remark
0.2 0.2 0.35 23.2 single pack
0.25 0.25 0.4 23.2 single pack
0.3 0.3 0.45 23.2 single pack
0.35 0.35 0.5 23.2 single pack
0.4 0.4 0.55 23.2 single pack
0.45 0.45 0.6 23.2 single pack
0.5 0.5 0.65 23.2 single pack
0.6 0.6 0.75 23.2 single pack
0.8 0.8 0.95 23.2 single pack
0.9 0.9 1.05 23.2 single pack
1 1 1.15 23.2 single pack
1.2 1.2 1.35 23.2 single pack



Payment methods: T/T(Telegraphic Transfer), Western Union, MoneyGram, Paypal.

Payment Terms: Full payment before shipment.


Delivery Terms: EXW, FOB, CIF, DDU, DDP optional.

Shipping methods:

1)Door to Door - Via International Express: DHL/FedEx/UPS etc. - Shipping time: 3-7 days.

2)Door to Seaport - By sea: Maersk, MSC, CMA-CGM, Evergreen, Cosco, APL etc. - Shipping time: about 1 month.

3)Door to airport - By plane - Shipping time: about one week.
